Akmarti is serving ready mix industry with production line capacities from 30 m3 to 180 m3 per hour with superior performance for all your needs. Providing stationary, mobile, compact, dry type and precast concrete batching plants, concrete mixers, and concrete delivery systems.
Capacity from 30 m3 to 180 m3 per hour. According to establish purpose could be used pan, twin shaft or planet mixer. It is available to manufacture dry concrete even without using mixer.

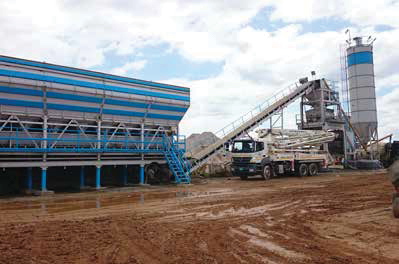

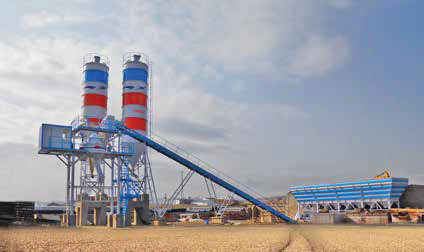

Stationary Ready Mix Concrete Plant
| 30 BP | 60 BP | 100 BP | 100 BTS | 120 BTS | 180 BTS | 180 BTS-DX | |||||||
| Capacity (m3/hour) | 25-30 | 55-60 | 90-100 | 90-100 | 110-120 | 110-120 | 110-120 | ||||||
| Mixer Type | Planetary | Twin Shaft | |||||||||||
| Mixer Motor Power (kW) | 18,5 | 37 | 2x45 | 2x37 | 2x55 | 2x55 | 2x55 | ||||||
| Mixer Capacity (Compacted) ( l ) | 500 | 1000 | 2000 | 2000 | 3000 | 3000 | 3000 | ||||||
| Aggregate Bins | 2/3/4/5 | ||||||||||||
| Aggregate Bunker Capacity (m3) | 40-150 | ||||||||||||
| Total Motor Power (kW) | 80 | 90 | 170 | 155 | 190 | 190 | 190 | ||||||
Capacity from 60 to 120 m3 per hour. Low-cost installation, suitable for shipping by truck, could be assembled on narrow places andeasy to move.

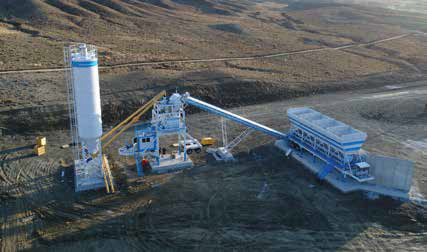

Mobile Concrete Batching Plant
| 60 MSP | 60 MH | 60 M | 100 M | 100 MS | 100 MB | 120 MCB | ||||||
| Capacity (m3/hour) | 25-30 | 55-60 | 90-100 | 90-100 | 110-120 | 110-120 | 110-120 | |||||
| Mixer Type | Planet | Single Shaft | Single Shaft | Single Shaft | Twin Shaft | Twin Shaft | Twin Shaft | |||||
| Mixer Motor Power (kW) | 37 | 37 | 37 | 2X37 | 2X37 | 2X37 | 2x55 | |||||
| Mixer Capacity (Compacted) ( l ) | 1000 | 1000 | 1000 | 2000 | 2000 | 2000 | 3000 | |||||
| Aggregate Bins | 4 Internal | 4 Internal | 4 Internal | 4 Internal | 3/4/5 External | 3/4/5 External | 3/4/5 External | |||||
| Aggregate Bunker Capacity (m3) | 40 Internal | 20 Internal | 46 Internal | 60 Internal | 60-120 | 60-120 | 60-120 | |||||
| Mixer Loading | Belt Conveyor | Bucket | Belt Conveyor | |||||||||
| Cement Silo (m3) | 40 Internal | 50 - 250 External | ||||||||||
| Total Motor Power (kW) | 100 | 65 | 70 | 115 | 125 | 125 | 160 | |||||
